Aquastrip - Joint Sealant Size and Packing Guide
Aquastrip comes in a wide range of sizes to achieve “the perfect seal”, every time.
The following tables show the size and quantity of Aquastrip Joint Sealant required for each joint type. If in any doubt please Contact Us for assistance.
Aquastrip Joint Sealant for manholes with tongued and grooved joints
|
Manhole ring diameter DN (mm)
|
Aquastrip size a x b (mm)
|
Length required per joint (m)
|
Rolls per carton
|
Length per carton (m)
|
Weight per carton (kg)
|
Primer required per carton (kg)
|
|---|---|---|---|---|---|---|
|
900
|
60 x 12
|
3.1
|
4 x 6m
|
24
|
27
|
0.8
|
|
1050
|
60 x 12
|
3.6
|
4 x 6m
|
24
|
27
|
0.8
|
|
1200
|
80 x 12
|
4.1
|
3 x 6m
|
18
|
27
|
0.8
|
|
1350
|
80 x 12
|
4.6
|
3 x 6m
|
18
|
27
|
0.8
|
|
1500
|
80 x 12
|
5.1
|
3 x 6m
|
18
|
27
|
0.8
|
|
1800
|
80 x 12
|
6.1
|
3 x 6m
|
18
|
27
|
0.8
|
|
2100
|
120 x 12
|
7.0
|
2 x 6m
|
12
|
27
|
0.9
|
|
2400
|
120 x 12
|
8.0
|
2 x 6m
|
12
|
27
|
0.9
|
|
2700
|
120 x 12
|
9.0
|
2 x 6m
|
12
|
27
|
1.0
|
|
3000
|
120 x 12
|
10
|
2 x 6m
|
12
|
27
|
1.0
|
Aquastrip Joint Sealant for manholes with rebate or ogee joints
|
Manhole ring diameter DN (mm)
|

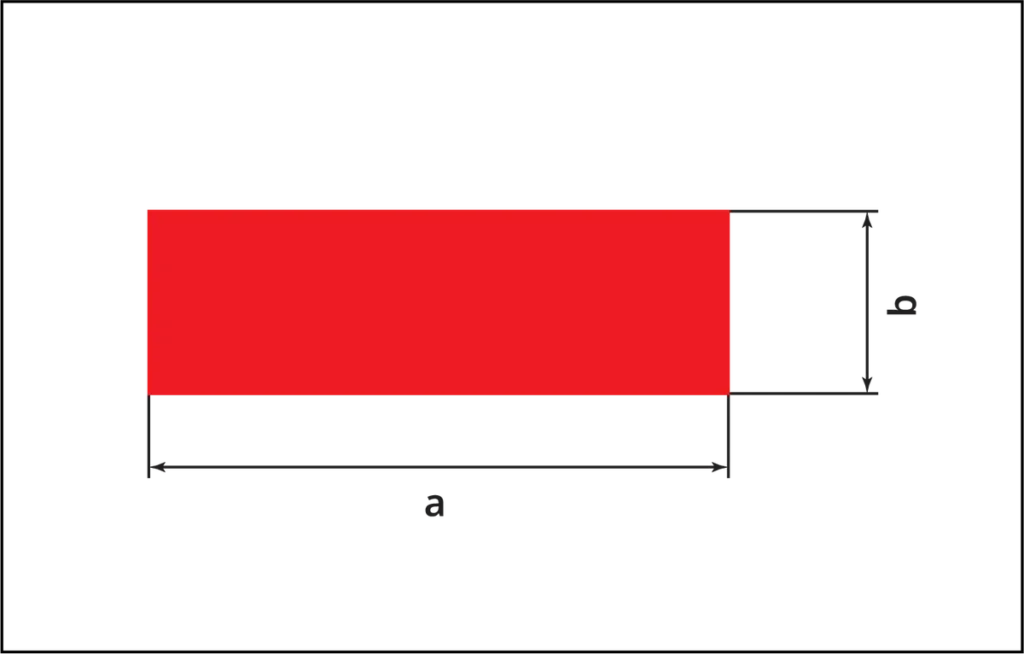

Aquastrip size a x b (mm)
|
Length required per joint (m)
|
Rolls per carton
|
Length per carton (m)
|
Weight per carton (kg)
|
Primer required per carton (kg)
|
|---|---|---|---|---|---|---|
|
900
|
25 x 20
|
3.1
|
8 x 4m
|
32
|
25
|
0.7
|
|
1050
|
25 x 20
|
3.6
|
8 x 4m
|
32
|
25
|
0.7
|
|
1200
|
25 x 20
|
4.1
|
8 x 4m
|
32
|
25
|
0.7
|
|
1350
|
25 x 20
|
4.6
|
8 x 4m
|
32
|
25
|
0.7
|
|
1500
|
40 x 25
|
5.1
|
5 x 3m
|
15
|
23
|
0.7
|
|
1800
|
40 x 25
|
6.1
|
5 x 3m
|
15
|
23
|
0.7
|
|
2100
|
40 x 25
|
7.0
|
5 x 3m
|
15
|
23
|
0.8
|
|
2400
|
40 x 25
|
8.0
|
5 x 3m
|
15
|
23
|
0.8
|
|
2700
|
40 x 25
|
9.0
|
5 x 3m
|
15
|
23
|
0.8
|
|
3000
|
40 x 25
|
10
|
5 x 3m
|
15
|
23
|
0.8
|
Aquastrip Joint Sealant for Box Culverts
|
Socket nib length (L) x offset (O) mm
|
Aquastrip size a x b (mm)
|
Length required per joint (m)
|
Rolls per carton
|
Length per carton (m)
|
Weight per carton (kg)
|
Primer required per carton (kg)
|
|---|---|---|---|---|---|---|
|
70 x 7
|
40 x 25
|
1
|
5 x 3m
|
15
|
23
|
0.8
|
|
70 x 10
|
40 x 25
|
1
|
5 x 3m
|
15
|
23
|
0.8
|
|
75 x 9
|
40 x 25
|
1
|
5 x 3m
|
15
|
23
|
0.8
|
|
75 x 10
|
40 x 25
|
1
|
5 x 3m
|
15
|
23
|
0.8
|
- AQUASTRIP is supplied in cartons 24 per pallet and should have no load placed on top.
- Storage temperature range -5°C to +35°C.
- Storage Life: 3 years from date of manufacture
- Aquastrip should be kept in a warm place prior to use and in very cold conditions can be heated with a naked flame during application.
