Aquastrip bitumen joint sealing strip - Technical Properties

Aquastrip bitumen joint sealing strip demonstrates a sealing performance of 10 times greater than the min. requirements of BS EN1917. It is also clean to handle and more flexible
than leading competitors.

Technical Properties

Aquastrip is designed to give the highest possible adhesion performance, combined with good flexibility and stability.
Aquastrip has been tested by TRELLEBORG for :
  • Watertightness
  • Cold Bend
  • Elongation
  • Temperature Stability
  • Adhesion
  • Water Absorption
It is also resistant to most chemicals and micro- organisms found in the soil, and offers high protection against root penetration.

For further information please download our Aquastrip Brochure or for draft specifications visit or page at NBS Source.

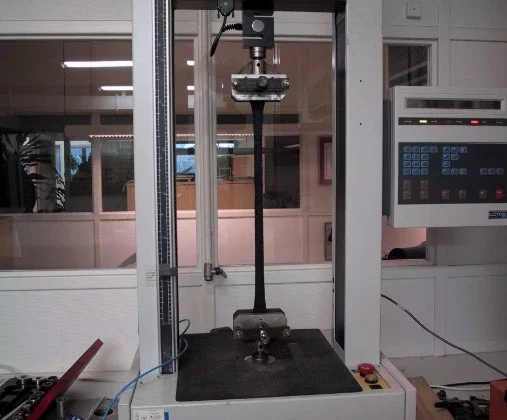

Aquastrip bitumen joint sealing strip being tested for elongation
Composition
Polymer modified bituminous compound incorporating temperature extenders, elastomer and mineral powder
Specific gravity
1.46 g/cm3 at 25° C
Specific volume
685 cm3 /kg
Temperature range : application
-5° to + 40° C
Temperature range : in service
-20° to + 50° C
Water tightness
Minimum 0.5 bar / 15 mins at 20° C (BS EN 1917), tested to 5.0 bar/15 mins at 20° C
Water absorption
0.025% (DIN 4062)
Chemical resistance
Very good (acids and alkalis pH 2 to 12)
Microbiological resistance
Excellent
Root resistance
Fully resistant (DIN 4062, The Building Regulations)
Packing
Cartons measure 360 x 360 x 260 (high) mm

Composition

polymer modified bituminous compound
incorporating temperature extenders,
elastomer and mineral powder

Specific gravity

1.46 g/cm3 at 25° C
Specific volume
685 cm3 /kg
Temperature range : application
-5° to + 40° C
Temperature range : in service
-20° to + 50° C
Water tightness
Minimum 0.5 bar / 15 mins at 20° C (BS EN 1917), tested to 5.0 bar/15 mins at 20° C
Water absorption
0.025% (DIN 4062)
Chemical resistance
very good (acids and alkalis pH 2 to 12)
Microbiological resistance
excellent
Root resistance
fully resistant (DIN 4062, The Building Regulations)
Packing
Cartons measure 360 x 360 x 260 (high) mm

Manhole Cross Sections - Placement of bitumen joint sealing strip

Aquastrip is designed to fit all tongued and grooved, rebated and ogee manhole joints. It is
compatible with all makes and sizes of precast concrete manhole rings and inspection
chamber sections.

Bitumen joint sealing strip, installation positions

Box Culverts and Ogee Pipes

AQUASTRIP cross-sections and sizes are designed to fit all makes and sizes of precast concrete box culverts made to the Box Culvert Association’s Standard specification 1991. Also all precast concrete rebated and ogee pipes BS 5911:110. 5911
Bituminous joint sealing strip placement
Diagram showing sealant position on Box Culvert Joint Section

Primer – KBE Liquid Film

For priming the joints of precast concrete manholes, inspection chambers, box-culverts and pipes prior to the applications of AQUASTRIP bitumen joint sealing strip. Koster KBE Liquid Film is a solvent free, bitumen rubber concentrate.

  • For priming of pre-cast concrete elements dilute 1 : 2 with clean water.
  • Penetrates the surface of concrete joint faces so as to provide a water barrier.
  • Dries to form a surface coating which seals the substrate / sealant interface and creates an adhesive bond to AQUASTRIP.
KBE Liquid Film is recommended as a primer prior to placement of the bitumen joint sealing strip

Primer Properties

Application Temp:
+5 deg.C to +35 deg.C
Solids content:
60%
Drying time:
60 minutes depending on temperature
Usage (average):
Approx. 200g/sq.m.
Unit size:
6 kg
Application Temp:
+5 deg.C to +35 deg.C
Solids content:

60%

Drying time:
60 minutes depending on temperature
Usage(average):
Approx. 200g/sq.m.
Unit size:
6 kg
